Realtime

Xams provides built-in support for real-time communication between server and client using SignalR.

Creating a Hub

Xams uses a single SignalR hub per browser window instance for optimal performance. You can create service-specific hubs using the ServiceHub attribute and implementing the IServiceHub interface.

Project/Hubs/ChatHub.cs

[ServiceHub(nameof(ChatHub))]
public class ChatHub : IServiceHub
{
    private static readonly string GroupName = "MyChatGroup";

    public async Task<Response<object?>> OnConnected(HubContext context)
    {
        await context.Groups.AddToGroupAsync(context.SignalRContext.ConnectionId, GroupName);
        return ServiceResult.Success();
    }

    public async Task<Response<object?>> OnDisconnected(HubContext context)
    {
        await context.Groups.RemoveFromGroupAsync(context.SignalRContext.ConnectionId, GroupName);
        return ServiceResult.Success();
    }

    public async Task<Response<object?>> OnReceive(HubContext context)
    {
        var stringMessage = context.Message;
        var message = context.GetMessage<ClientMessage>();

        if (message.type == "message")
        {
            await context.Clients.All.SendAsync("ReceiveMessage", message.content);
        }

        return ServiceResult.Success("Message Received!");
    }

    public class ClientMessage
    {
        public string type { get; set; }
        public string content { get; set; }
    }

    public async Task<Response<object?>> Send(HubSendContext context)
    {
        await context.Clients.All.SendAsync(context.Message as string ?? "");
        return ServiceResult.Success();
    }
}

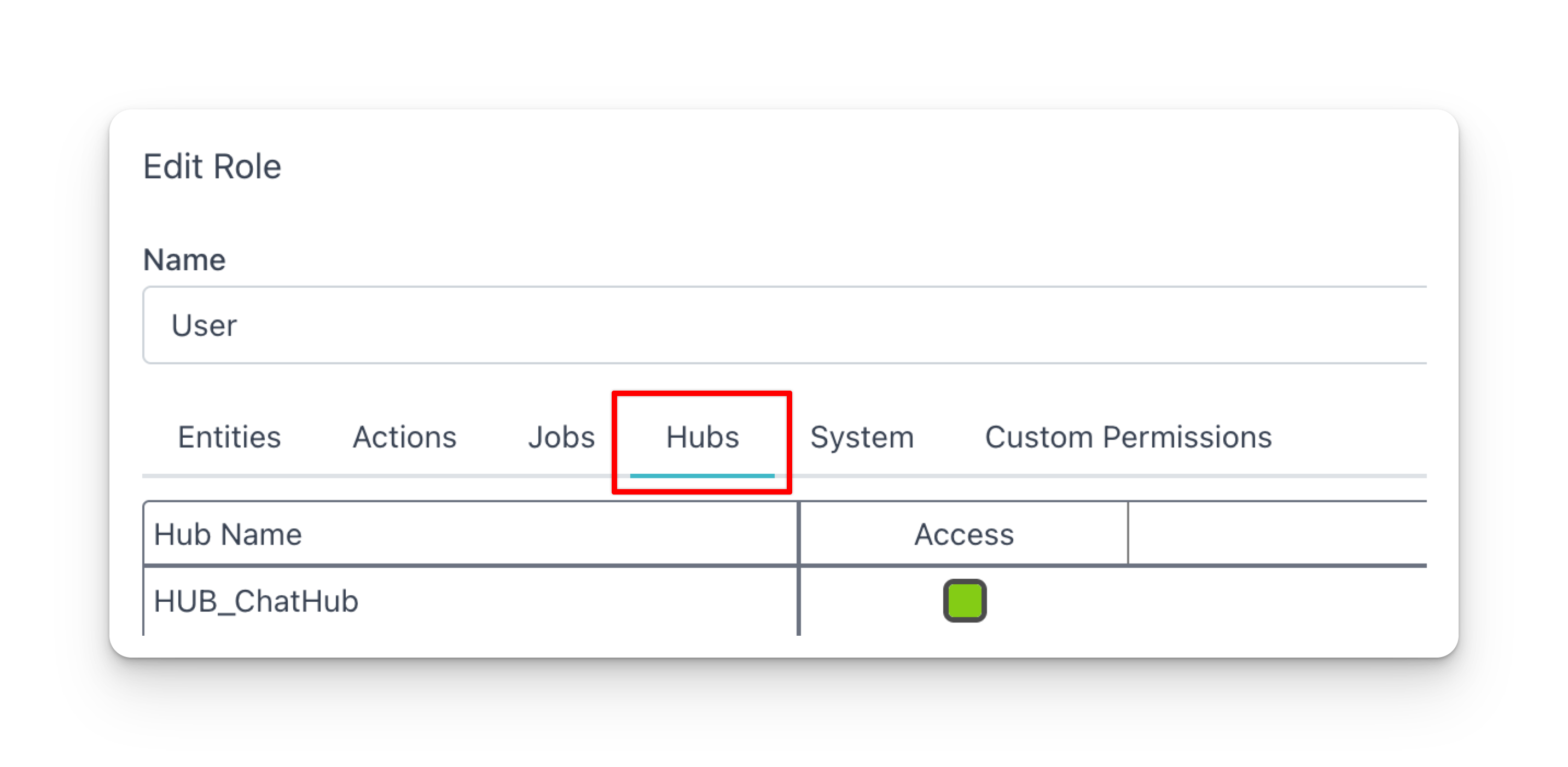

Hub Permissions

Hub access is controlled through role-based permissions.

Modifying hub permissions forces affected clients to reconnect, causing temporary disconnection.

The IServiceHub interface defines four methods with specific permission requirements:

IServiceHub Interface

public interface IServiceHub
{
    // Called when a client with hub permissions connects
    public Task<Response<object?>> OnConnected(HubContext context);

    // Called when a client disconnects or loses permissions
    public Task<Response<object?>> OnDisconnected(HubContext context);

    // Called when receiving messages from permitted clients
    public Task<Response<object?>> OnReceive(HubContext context);

    // Called from server-side services to send messages
    public Task<Response<object?>> Send(HubSendContext context);
}

Client Implementation

The client connects to the hub using the appContext.signalR() method, which returns a singleton SignalR connection for the browser window.

src/pages/Chat.tsx

const Chat = () => {
  const appContext = useAppContext();
  const [message, setMessage] = useState("");
  const [messages, setMessages] = useState<string[]>([]);

  const onSubmit = async (e: FormEvent<HTMLFormElement> | undefined) => {
    e?.preventDefault();
    const connection = await appContext.signalR();
    // Use send() for fire-and-forget, invoke() for return values
    await connection.send(
      "ChatHub",
      JSON.stringify({
        type: "message",
        content: message,
      })
    );
    setMessage("");
  };

  useEffect(() => {
    let cleanup: (() => void) | undefined;
    const connect = async () => {
      const signalR = await appContext.signalR();
      signalR.on("ReceiveMessage", (message: string) => {
        setMessages((msgs) => [...msgs, `${message}`]);
      });
      cleanup = () => signalR.off("ReceiveMessage");
    };
    if (appContext.signalR && appContext.signalRState === HubConnectionState.Connected) {
      connect();
    }
    return () => cleanup?.();
  }, [appContext.signalRState]);

  return (
    <AppLayout>
      <ul>
        {messages.map((msg, idx) => (
          <li key={idx}>{msg}</li>
        ))}
      </ul>
      <form onSubmit={onSubmit}>
        <div className="w-full flex gap-2">
          <TextInput
            value={message}
            className="w-full"
            onChange={(e) => setMessage(e.currentTarget.value)}
          ></TextInput>
          <div>
            <Button type="submit">Send</Button>
          </div>
        </div>
      </form>
    </AppLayout>
  );
};

Sending Messages from Services

Service classes (Actions, Jobs, or Service Logic) can send messages to clients using the HubSend method, which invokes the hub's Send method.

Project/Service/WidgetService.cs

[ServiceLogic("Widget", DataOperation.Create, LogicStage.PreOperation)]
public class WidgetService : IServiceLogic
{
    public async Task<Response<object?>> Execute(ServiceContext context)
    {
        await context.HubSend<ChatHub>(new ChatHub.ServerMessage()
        {
            type = "message_all_clients",
            content = "A new widget is being created!"
        });
        return ServiceResult.Success();
    }
}

The HubSend method executes in a new database transaction, independent of the current service's transaction context.

The hub's Send method processes the message:

Project/Hubs/ChatHub.cs

[ServiceHub(nameof(ChatHub))]
public class ChatHub : IServiceHub
{
    // Additional implementation details
    public async Task<Response<object?>> Send(HubSendContext context)
    {
        var message = context.GetMessage<ServerMessage>();
        if (message.type == "message_all_clients")
        {
            await context.Clients.All.SendAsync(message.content);
        }
        return ServiceResult.Success();
    }

    public class ServerMessage
    {
        public string type { get; set; }
        public string content { get; set; }
    }
}

The Clients.All property sends messages to all connected clients across the entire application, not just those connected to this specific hub. Use groups to target specific client subsets.

Authentication

SignalR authentication requires configuring JWT bearer token support in Program.cs:

Project/Program.cs

builder.Services
    .AddAuthentication(JwtBearerDefaults.AuthenticationScheme)
    .AddJwtBearer(options =>
    {
        options.Events = new JwtBearerEvents
        {
            OnMessageReceived = context =>
            {
                var accessToken = context.Request.Query["access_token"];
                var path = context.HttpContext.Request.Path;

                if (!string.IsNullOrEmpty(accessToken) &&
                    path.StartsWithSegments("/xams/hub"))
                {
                    context.Token = accessToken;
                }

                return Task.CompletedTask;
            }
        };
    });

The getAccessToken function provides bearer tokens to both the useAuthRequest hook and SignalR connections.

src/pages/_app.tsx

import {
  AppContextProvider,
  AuthContextProvider,
  getQueryParam,
} from "@ixeta/xams";

export default function App({ Component, pageProps }: AppProps) {
  const userId = getQueryParam("userid", router.asPath);

  const getAccessToken = async () => {
    // Token retrieval implementation
  };

  return (
    <MantineProvider theme={theme}>
      <AuthContextProvider
        apiUrl={process.env.NEXT_PUBLIC_API as string}
        headers={{
          UserId: userId as string,
        }}
        getAccessToken={getAccessToken}
      >
        <AppContextProvider>
          <Component {...pageProps} />
        </AppContextProvider>
      </AuthContextProvider>
    </MantineProvider>
  );
}

SignalR connections require access tokens to be passed via query string due to WebSocket limitations with headers.

Ensure getAccessToken is ready before initializing SignalR connections:

src/pages/Chat.tsx

const Chat = () => {
  const appContext = useAppContext();
  const auth = useAuth();

  ...

  useEffect(() => {
    let cleanup: (() => void) | undefined;

    if (auth.isReady && appContext.signalRState === HubConnectionState.Connected) {
      const connect = async () => {
        const signalR = await appContext.signalR();
        signalR.on("ReceiveMessage", (message: string) => {
          setMessages((msgs) => [...msgs, `${message}`]);
        });

        cleanup = () => signalR.off("ReceiveMessage");
      };
      connect();
    }

    return () => cleanup?.();
  }, [auth.isReady, appContext.signalRState]);

  return (
    ...
  );
};
